MF600 LED TB Fluorescence Microscope for Tuberculosis Diagonsis
Description

Specially for Tuberculosis Diagonsis, Analysis And Research, Be Based on Innovative LED Fluorescence Technology.

MF600 LED TB Fluorescence Microscope is designed specifically for the daily routine work in the demanding applications of education, pathology investigation, clinical and laboratory usage. Innovative LED as fluorescence illumination source, provide excellent image with easy and comfortable usage experience.

● One Click Switch, Easy To Fluorescence and Bright Field Exchange

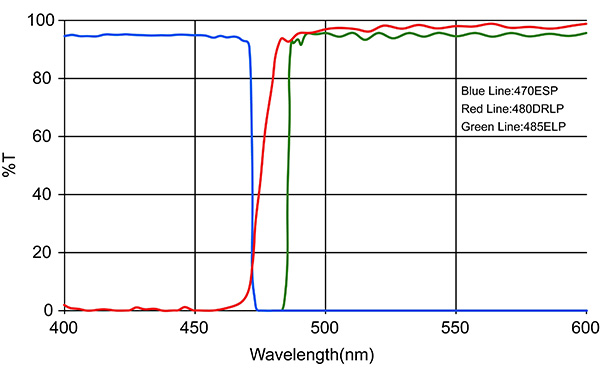

● Chroma Filter Special For Phthisis Checking

Auramine O

Wavelength (nm)

Exciter

470Sp

Dichroic

480DRLP

Barrier

485LP

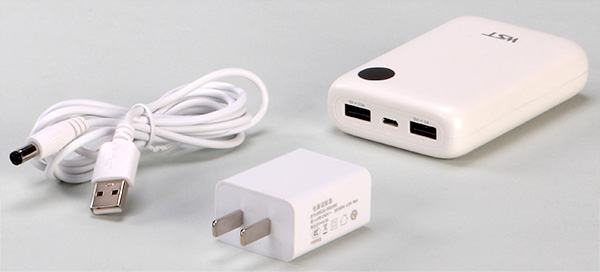

● Power Bank and Vehicle Power Supply Can Supply Power to The LED Fluorescence Unit, And Ease to Use The Microscope in Field Or In Power Shortage Place



Item

Technical Specifications

MF600

Optical System

Color Corrected Infinite Optical System

Viewing Head

Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance: 48-76mm

Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance: 48-76mm, Light distribution (both): 100: 0 (100% for eyepiece)

80:20(80% for trinocular head and 20% for eyepiece)

Eyepiece

WF10×/22mm (Diopter adjustable), tube diameter: 30mm

Nosepiece

Backward Quintuple Nosepiece

Infinity Plan Objectives

(without coverslips)

PLAN 4×/0.10, W.D.=12.10mm

PLAN 10×/0.25, W.D.=4.64mm

PLAN 20×/0.40(S), W.D.=2.41mm

PLAN 40×/0.65 (S), W.D.=0.65mm

PLAN 60×/0.90(S), W.D.=0.33mm

PLAN 100×/1.25(S, Oil), W.D.=0.12mm

Condenser

Swing Out condenser N.A.0.9/ 0.13, with iris diaphragm.

Focusing

Coaxial Coarse & Fine Adjustment, Coarse Focusing Travel Range: 25mm

Fine Focusing Travel Range: 2µm/division

Stage

Reckless Wire Driven Mechanical Fixed Stage with focus lock.

Stage size: 182 mm×140mm, Travel range: 77mm×52mm

Two-slide holder

Koehler Illumination

(Transmitting)

3W LED Lamplifetime 20000 hours

Wide voltage input: 100V240V

Field diaphragm, center adjustable

Rechargeable battery pack can be used

Filter

Dia 45mm, Blue

Dia 45mm, Green

Dia 45mm, Amber

Dia 45mm, Grey

C-mount

1×C-mount

0.57× C-Mount

Fluorescence Attachment

Epi fluorescence unit

Auramine O filter (Chroma Filter Special for Phthisis Checking)

5W LED fluorescent Built-in Media Device.

Rechargeable battery pack can be used

Note: ●Standard Outfit, ○Optional
